Having Fun with Structural Directives in Angular

Unconventional use of structural directives

This post aims to show undocumented or inconvenient usage of angular directives. They can help in numerous ways to keep your view declarative and to move side effects to the outer boundaries of your application. As a result, you’ll get more readable and testable source code.

I have to admit, that Igor Minar himself does not really recommend this approach. See here. When we don’t call the createEmbeddedView method on every change of an input variable or within a loop and if we keep the context object alive I would argue that it is still an acceptable one. That said, let’s start having fun :)

1️. What are Structural Directives?

Short: A directive that is placed on a <template> element and provides possibilities to structure the DOM.

The most well known structural directives provided by Angular are *ngIf and *ngFor. We can recognize a structural directive by the * in front of its selector name. This is syntactic sugar provided by Angular in order to make them more convenient to use. The following two snippets are basically the same:

<div *ngIf="showGreeting">
   <p>Welcome, {{username}}</p>
</div>

is de-sugared into:

<ng-template [ngIf]="showGreeting">
   <div>
      <p>Welcome, {{username}}</p>
   </div>
</ng-template>

So, effectively a structural directive is just a directive placed on a template. When it is executed it triggers when and how the given template is rendered.

The syntactic sugar hides the existence of the template from the developer and therefore enables them to write very declarative and well understandable abstractions for their business use cases. The following directives are samples of some application specific abstractions.

2️. The Observables Directive

This is an already known and used approach of handling Observables subscriptions in Angular via structural directives. The advantage of it is that you don’t have to subscribe nor to unsubscribe from observables manually. This is done automatically by the async pipe. This is already possible with the *ngIf directive but more often you don’t need the conditional check and just declare your Observables.

This directive comes in handy especially when there would be multiple subscriptions to the same observable in one template and it works perfectly fine within a component with OnPush change detection. Example:

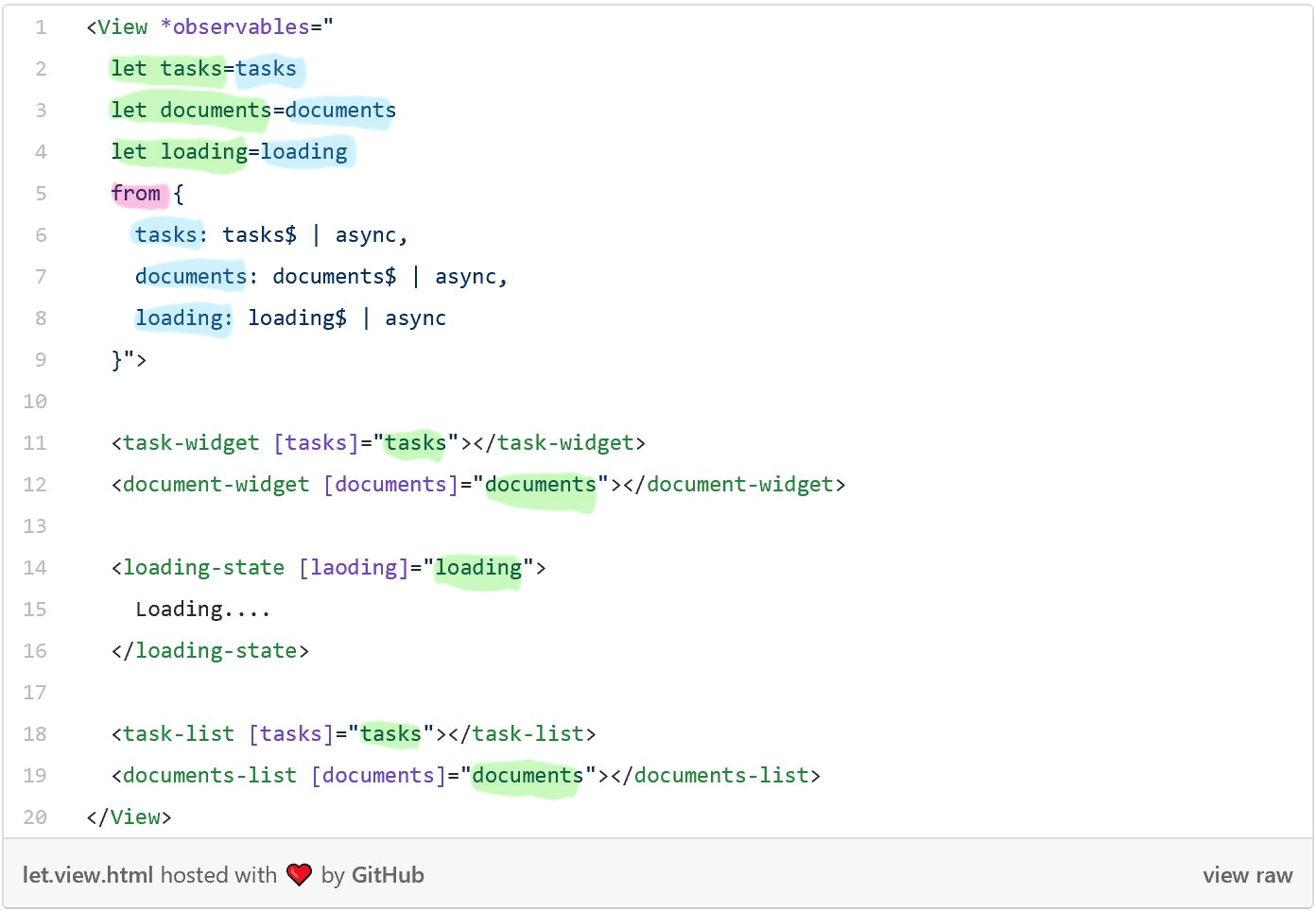

alt text

Highlighted in green are the template input variables, which access the blue highlighted context object from the directive. The context object is defined within the directive and in our example it corresponds with the object behind the pink from keyword.

The directive defines a custom language with a from keyword after which an object is expected. In the example above the task$, documents$ and loading$ are Observables provided by the corresponding component of the template. We implicitly subscribe to them through the async pipe and feed the values into the context object of the directive. The context can then be accessed and referenced again through template input variables within the template, e.g. let tasks=tasks. The first part let tasks defines the template input variable, followed by the assignment of the variable tasks from the directives context object. How the context object looks like is defined in the from part.

Here is the source of the directive:

import {Directive, TemplateRef, ViewContainerRef, OnInit, Input} from '@angular/core';

export class ObservablesContext {
  [key: string]: any;
}

@Directive({
  selector: '[observables]'
})
export class ObservablesDirective implements OnInit {

  private _context = new ObservablesContext();

  // You can create a custom domain specific language with the pattern "[selector]Keyword",
  // which maps to an Input.
  // "observablesFrom" for example can then be used like *observables="let ... from { ... }
  @Input()
  set observablesFrom(value: any) {
    Object.assign(this._context, value);
  }

  constructor(private template: TemplateRef<ObservablesContext>,
              private viewContainer: ViewContainerRef) {}

  ngOnInit() {
    this.viewContainer.createEmbeddedView(this.template, this._context);
  }
}

A very important fact to mention is that the call to createEmbeddedView is only done once. It’s only the context that is being changed during runtime.

Please note that the View component does only project its content and giving the directive a more meaningful name through its selector.

3️. Route Params Directive

This structural directive allows you to read parameters from the currently active route and pass it via inputs into your container component. Therefore your container component does not have to depend on the ActiveRoute directly, gaining a nice separation of concerns. Assume we have the following route configured:

const routes: Route[] = [
  { path: 'commits/:usernameParam', component: CommitsView }
];

Then we can use the route params directive to extract the username parameter and pass it to the <commit-list-view> component:

<!-- commitsView.html-->
<Route *params="let username=usernameParam">
    <commit-list-view [user]="username"></commit-list-view>
</Route>

Please note again that the purpose of the component Route is just to form a nice declarative language.

In the implementation of the directive, we subscribe to the current activated route and its route params. On every change we sync the params to the context object of our structural directive:

import {Directive, OnInit, TemplateRef, ViewContainerRef, OnDestroy} from '@angular/core';
import {ActivatedRoute} from '@angular/router';
import {Subscription} from 'rxjs';

export class ParamsContext {
  [key: string]: any;
}

@Directive({
  selector: '[params]'
})
export class ParamsDirective implements OnInit, OnDestroy {

  context = new ParamsContext();

  private _routeParamsSubscription: Subscription;

  constructor(private template: TemplateRef<ParamsContext>,
              private viewContainer: ViewContainerRef,
              private route: ActivatedRoute) {}

  ngOnInit() {
    this.viewContainer.createEmbeddedView(this.template, this.context);
    this._routeParamsSubscription = this.route
      .paramMap
      .subscribe((paramMap: any) =>
        // Copy all route params on the context
        Object.assign(this.context, paramMap.params)
      );
  }

  ngOnDestroy() {
    this._routeParamsSubscription.unsubscribe();
  }
}

4️. Route Configuration Directive

With structural directives, we can do all sorts of crazy stuff. If we can read the route params declaratively, can we possibly also configure a route itself? Yes we can, but this is a dangerous one and the implementation should be considered as a proof of concept to be able to configure your routes declaratively. The Angular Router allows it to change its configuration at runtime, so we can extend it within a structural directive with a given template.

<!-- within: app.component.html -->
<router-outlet></router-outlet>

<Route *path="'foo/:usernameParam' let username=usernameParam">
  <commits-container [username]="username" #cc>
    <commit-list [commits]="cc.commits$ | async"></commit-list>
  </commits-container>
</Route>

In the example above we have configured the route foo/:usernameParam. As with the route params directive we can access these params through the directives context object. It is important to note that this configuration is made inside of the app.component.html and therefore is only rendered once. Otherwise, we would configure the same route over and over again.

Let’s take a look at the implementation:

import {Component, Directive, Input, OnInit, TemplateRef, Type, ViewChild, ViewContainerRef} from '@angular/core';
import {ActivatedRoute, Router, Route} from '@angular/router';
import {take} from 'rxjs/operators';

export class RouteContext {
  [key: string]: any;
}

@Directive({
  selector: '[path]'
})
export class RouteConfigurationDirective implements OnInit {

  @Input('path') path: string;

  @Input('pathMatch') match: string;
  @Input('pathOutlet') outlet: string;

  constructor(private template: TemplateRef<RouteContext>,
    private router: Router) {}

  ngOnInit() {
    const config: Route = {
      path: this.path,
      component: RouterRenderComponent, // placeholder component for rendering the given template
      data: { template: this.template } // pass the template via routes data
    };

    // 'prefix' or 'full'
    if (this.match) {
      config.pathMatch = this.match;
    }

    // adress a named router outlet
    if (this.outlet) {
      config.outlet = this.outlet;
    }

    this.router.config.push(config);
  }
}

@Component({
  selector: 'router-component',
  template: `
    <ng-container #container></ng-container>
  `
})
export class RouterRenderComponent implements OnInit {

    context = new RouteContext();

    @ViewChild('container', {read: ViewContainerRef}) container: ViewContainerRef;

    private template: TemplateRef<any>;

    constructor(private route: ActivatedRoute) {}

    ngOnInit() {
      this.route.data.pipe(take(1)).subscribe(data => this.template = data.template);
      this.container.createEmbeddedView(this.template, this.context);

      this.route.paramMap
        .subscribe((paramMap: any) => {
          Object.assign(this.context, paramMap.params);
        });
    }
}

In the directive we inject the router and extend it with the given configuration. The RouteRenderComponent is just a placeholder component that takes the template from the routes data and renders it. What is missing: There should be some logic to recognize already configured routes and child routes are not supported too.

5. Fetch Directive

This directive allows us to fetch data via HTTP. In this showcase only GET requests are supported. Let’s take a look at its usage:

<Route *params="let username=usernameParam">
  <Fetch *url="let commits from commitsUrl(username) map toCommits">
      <commit-list [commits]="commits"></commit-list>
  </Fetch>
</Route>

In this example we use the route params directive to access the current username route param, pass it into the commitsUrl method and finally map the response to a structure we can display with the <commit-list> component.

import {HttpClient} from '@angular/common/http';
import {ComponentFactoryResolver, Directive, Input, OnInit, TemplateRef, Type, ViewContainerRef} from '@angular/core';
import {LoadingComponent} from '../loading-spinner/loading-spinner.component';

/**
 *
 * <Fetch *url="let commits from 'https://api.github.com/users/[username]/events'">
 *    <commits-list commits="commits"><commits-list>
 * </Fetch>
 */

export class UrlContext {
  $implicit: any;
}

@Directive({
  selector: '[url]'
})
export class FetchUrlDirective implements OnInit {

  context = new UrlContext();
  url: string;

  @Input()
  set urlFrom(value: string) {
    this.url = value;
    this.fetch(this.url);
  }

  @Input('urlMap') mapFn = response => response; // Function to map the response

  @Input('urlLoadingComponent') loadingComponent: Type<any> = LoadingComponent; // Default Loading Spinner

  constructor(private template: TemplateRef<UrlContext>,
              private componentFactoryResolver: ComponentFactoryResolver,
              private viewContainer: ViewContainerRef,
              private httpClient: HttpClient) {}

  ngOnInit() {}

  fetch(url :string) {
    if (url) {
      //Show LoadingComponent
      this.viewContainer.remove();
      let componentFactory = this.componentFactoryResolver.resolveComponentFactory(this.loadingComponent);
      this.viewContainer.createComponent(componentFactory);
      //
      // Request data
      this.httpClient.get(this.url)
        .subscribe(
          response => {
            this.viewContainer.remove();
            this.viewContainer.createEmbeddedView(this.template, { $implicit: this.mapFn(response) });
          },
          error => {
            this.viewContainer.remove();
          });
    }
  }
}

Summary

Other possible directives in my head:

  • Connect-Redux directive
  • User-Role directive
  • Specific service call directive

I hope you enjoyed this journey as much as I did. I guess not ;) but that’s perfectly okay. My goal was to explore the possibilities of structural directives a little bit in order to learn more about them.

You can take a look at the source here. I've also managed to write some tests with Spectator. You can take a look at them here.
